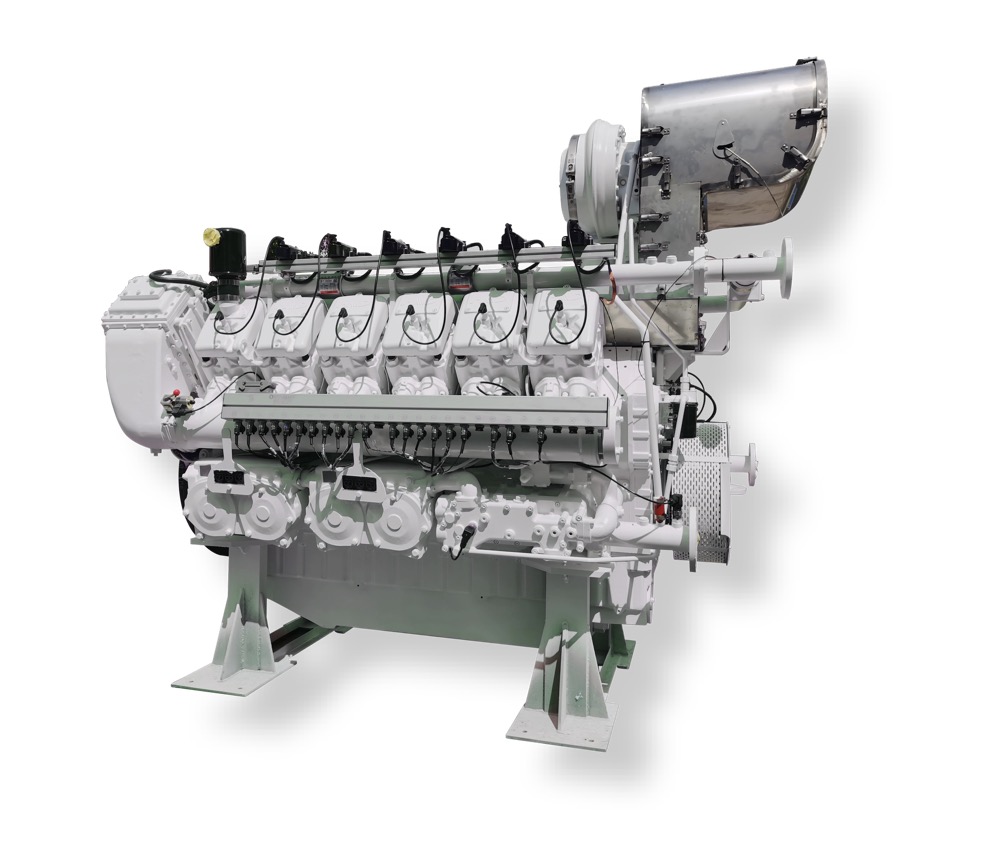

CHG620V12 Series
<< Download Detailed Documents
CHG620V12 Series Gas Engine ProductReturn
0. Data Sheet Document-CHG620V12 Gas Engine.pages
1. Data Sheet Document-CHG620V12 Gas Engine.pdf
2. Engine Drawing 2D-CHG620V12-20250102.dwg
3. Engine Drawing 2D-CHG620V12-20250102.pdf
6.Drawing 3D-CHG620V12 Gas Engine-20230616.stp
8. CHG620 Series Gas Engine Operation Manual-2023.10.31.pdf
9.1 CHG620 Parts manual-20231120.pdf
9.2 Gas engine special parts list.pdf
10. CHG620 Series Gas Engine Maintenance Manual-2023.10.24.pdf
11. Maintance List for 60000H-CHG620V12 Gas Engine-20240613.xlsx
Electrical power: 1000kW
Thermal output: 1097kW
Electrical efficiency: >40.38 %
Thermal efficiency: >44.29 %
Total efficiency: >84.68 %
Gas consumption: 248 (Hu = 35.88MJ/m3)
Oil consumption rate: ≤0.25 g/kWh
NOx (5%O2): ≤500 mg/Nm3

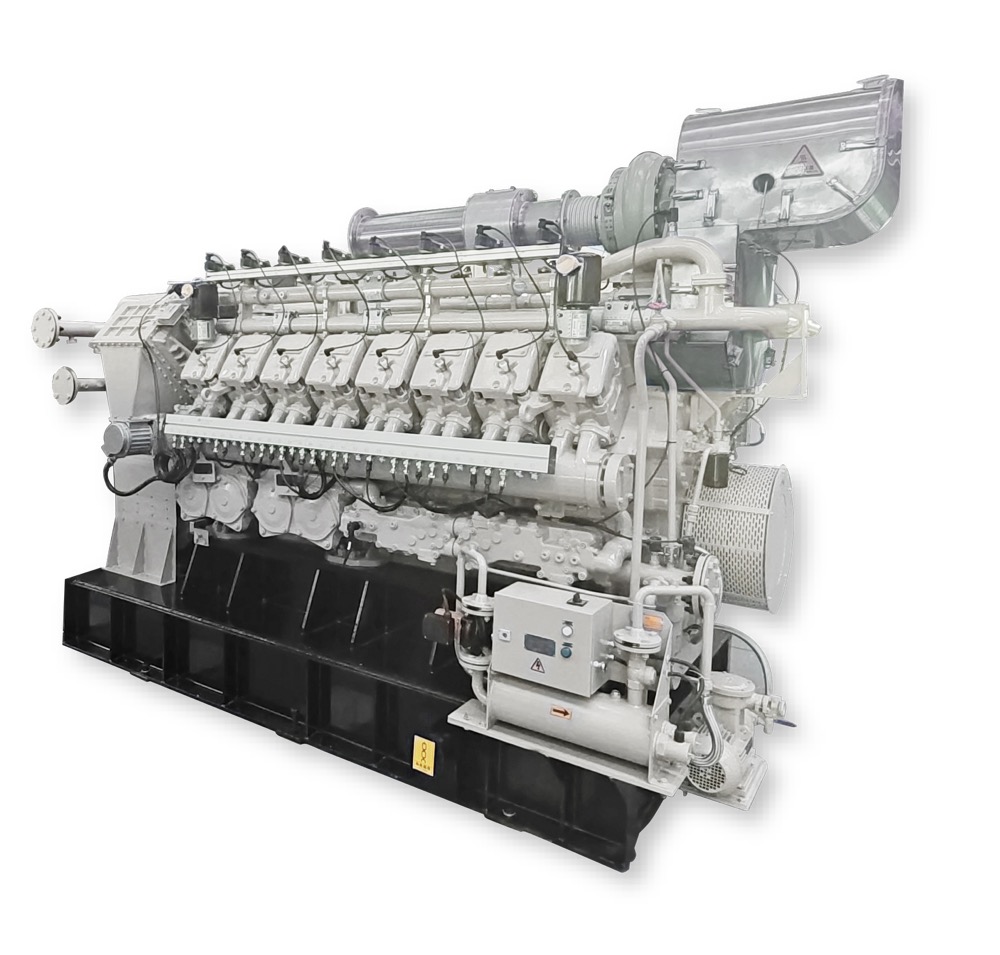

CHG622V16 Series
<< Download Detailed Documents
CHG622V16 Series Gas Engine ProductReturn
0. Data Sheet Document-CHG622V16 Gas Engine .pages
1. Data Sheet Document-CHG622V16 Gas Engine .pdf
4. Engine Drawing 2D-CHG622V16-20250102.dwg
5. Engine Drawing 2D-CHG622V16-20250102.pdf
8. CHG622 Series Gas Engine Operation Manual-2023.10.24.pdf
9.1 Parts manual-CHG622V16 -20231120.pdf
9.2 Gas engine special parts list.pdf
10. CHG622 Series Gas Engine Maintenance Manual-2023.10.24.pdf
11. Maintance List for 60000H-CHG622V16-20240613.xlsx
Electrical power: 1500kW
Thermal output: 1705kW
Electrical efficiency: >41.08 %
Thermal efficiency: >46.70%
Total efficiency: >87.78 %
Gas consumption: 366 (Hu = 35.88MJ/m3)
Oil consumption rate: ≤0.25 g/kWh
NOx (5%O2): ≤500 mg/Nm3

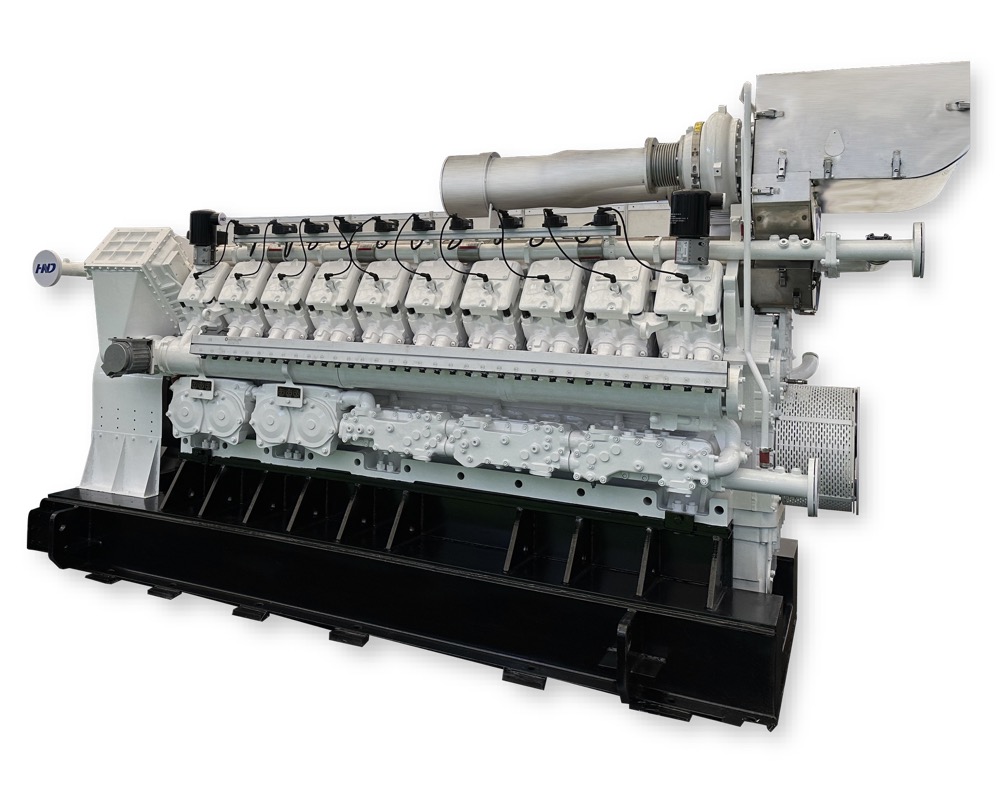

CHG622V20 Series
<< Download Detailed Documents
CHG622V20 Series Gas Engine ProductReturn
0. Data Sheet Document-CHG622V20 Gas Engine.pages
1. Data Sheet Document-CHG622V20 Gas Engine.pdf
2. Engine Drawing 2D-CHG622V20-20250102.dwg
3. Engine Drawing 2D-CHG622V20-20250102.pdf
7.1 CHG622 Series Gas generator set management system-20240902.pdf
8. CHG622 Series Gas Engine Operation Manual-2023.10.24.pdf
9.1 Parts manual-CHG622V20-20231120.pdf
9.2 Gas engine special parts list.pdf
10. CHG622 Series Gas Engine Maintenance Manual-2023.10.24.pdf
11.Maintance List for 60000H-CHG622V20-20240613.xlsx
Electrical power: 2000kW
Thermal output: 2215kW
Electrical efficiency: >41.3 %
Thermal efficiency: >45.75 %
Total efficiency: >87.04 %
Gas consumption: 486 (Hu = 35.88MJ/m3)
Oil consumption rate: ≤0.25 g/kWh
NOx (5%O2): ≤500 mg/Nm3
